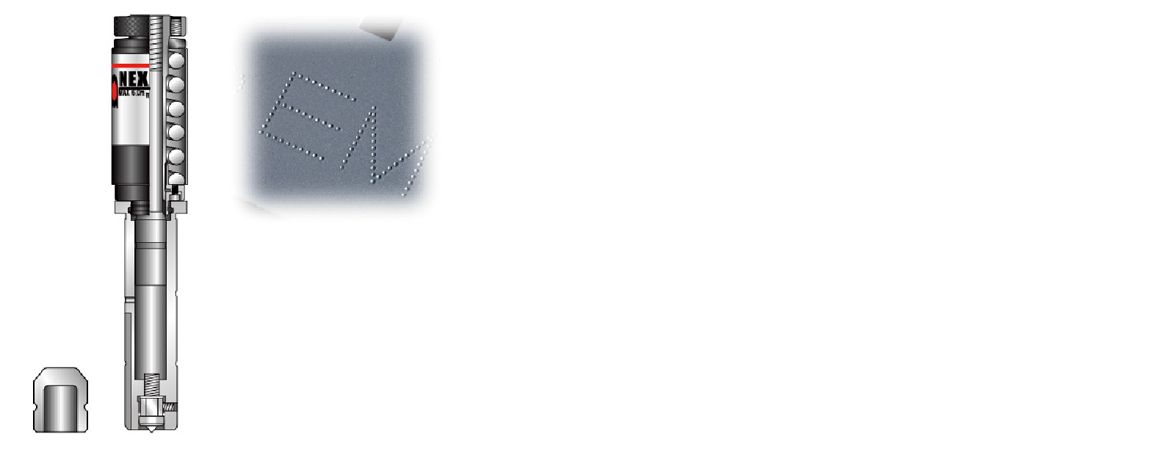

High Speed Marking Tools
Features
- Dot marking can be performed on EM/AE by utilizing high speed capacity.
- AP100 availability enables flexible marking including drawing and letters.
- Air-blow type enables intensive hit counts.
Specifications
| High Speed Marking Tool | ||
|---|---|---|
| Tool Type | NCT Long Ast 1/2” Air-blow | |
| Material Thickness | Nonadjustable Type Max. thickness ： 6.0mm | |
| Material | Mild Steel ・ Stainless ・ Aluminum | |
| Form Direction | Downward (Mark on punch side） | |
| Punch Tip | Angle : 90° / Depth is adjustable. | |
| Auto Program | Applicable to AP100 | |
| Reference Hit rate | (Stroke=1.4mm Pitch=0.5mm) | |
| EM2510NT | 1800 min-1 { hpm } | |
