Name: Contouring Tool [Complex shapes without Special or Semi-Standard tooling]
Brand: Amada
SKU: Amada Middle East FZCO
Price: undefined undefined
Availability: InStock
Rating: 4.5 (10 reviews)






Contouring Tool [Complex shapes without Special or Semi-Standard tooling]

large_csr-banner (4).jpg

medium_csr-banner (4).jpg

small_csr-banner (4).jpg

thumbnail_csr-banner (4).jpg

csr-banner (4).jpg

aits (1).jpg

AITS (Amada ID Tooling System)


**1. ID Mark [Digital Tooling Environment]**

[Digital Management by Bar Code] The location of tooling and the wear of tooling are managed digitally. It enables everyone to reduce tooling search time and to operate the grinding systematically.

**2. Adjust Button [Simple Maintenance]**

[Assembling/disassembling/adjustment can be performed by one button.] Tool-free operation enables anyone, regardless of skill, to perform maintenance quickly and surely.

**3. Tool Mark-Less(TML) [High Quality Performance]**

High Quality Performance by Tool Mark-Less (TML) - It reduces the tool mark that appears by punching.

**4. Increased Grind Life [Running Cost Reduction]**

The max grind life for B station was increased up to 6.5mm. Further cost-saving can be realized.


nex-3 (1).jpg

NEX III Tooling (Energy saving tool)



arft (1).jpg

ARFT (Amada Rapid Forming Tool)


v-cut-tools (1).jpg

V-Cut Tools


mpt-mapping-tools (1).jpg

MPT Tapping Tools



High Speed Marking Tools


- NEX III tools ensure the ultimate performance of EMZR type machines using AMADA’s unique digital tool management ID marking system.
- To ensure maximum life from our Electric & Hydraulic range of punching machines, it is recommended to use Airblow tooling with NEX springs and alpha guides.

standard-tooling (1).jpg

Standard Tooling


For air flow, decoration, location marker, shear tab, wire harnesses or clip attachment


special-order-tooling (1).jpg

Special Order Tooling


LANCE TOOL (Upform)

The AMTS reduces the tool change and setup time to about one-fifth of that required in the past. When the tools are assigned by an automatic program and the ram depth is controlled to high accuracy by an NC bender, the highly standardized AMTS specifications greatly ups the efficiency not only of  tool change and setup, but also of staged bending and all other bending operations, and brings about a substantial improvement in bending productivity.



AMADA Modular Tooling System


Clamp method, shape & accuracy - all designed to improve productivity of stage bending

hydraulic-clamping-grip (1).jpg

Hydraulic Clamping Holder A GRIP


- Tooling Setup Frequency Reduction by Stage Bending
- Tooling setup time Reduction by AGRIP
- Enlargement of Return Bend Area
- Secure Punch and Die Alignment Work
- Improvement **in Success Rate of Dr.ABE_BEND**

afh-tooling (1).jpg

AFH Tooling


Advantage



TOOLING



- Special tools delay part completion and add cost
- Manual labour for grinding and filing to remove nibble marks




*Deburring and removing nibble marks are done by grinding and filing

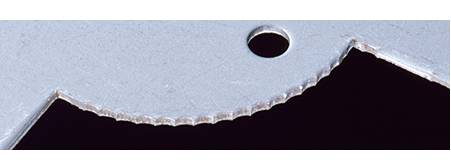

Nibble marks

- Fine contouring process done with pitch less than material thickness using EM series slug vacuum and new tooling design!

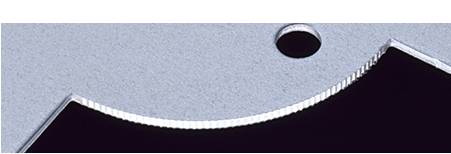

- Fine edge by Contouring Tool dispenses with filing work, enabling lower cost and short delivery time.


Contouring Tool [Complex shapes without Special or Semi-Standard tooling]

Features

Nibble marks
