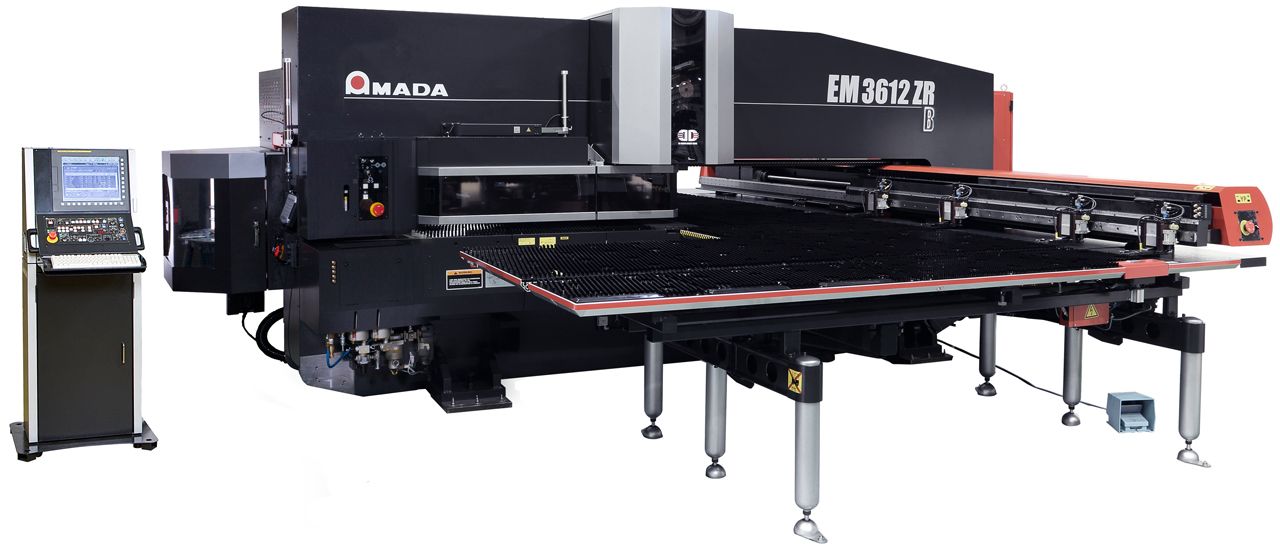

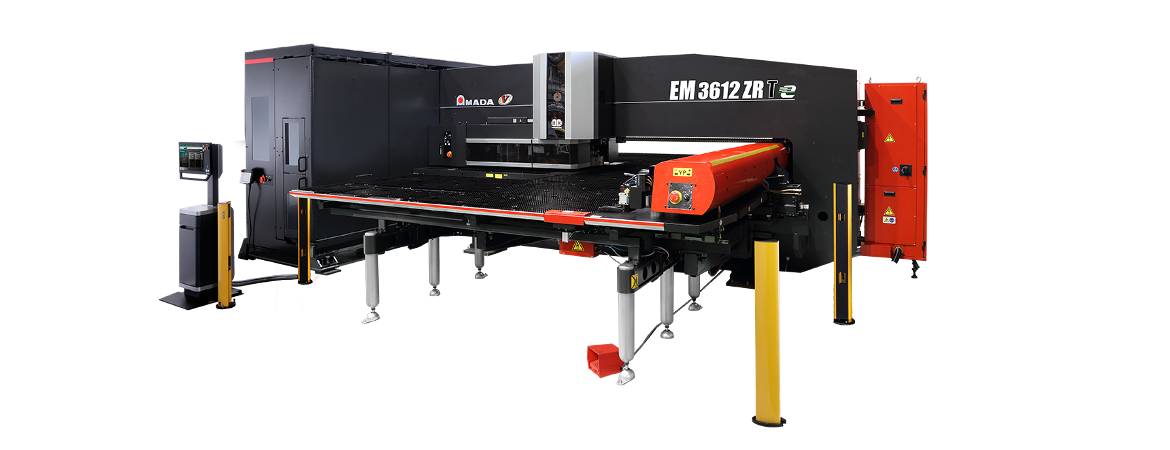

EM-ZR SERIES

EM-ZR SERIES

Fully automatic punching solution machine

Fusion of original technologies to achieve processing with high speed, productivity & grade

EM-ZR series comes with the world’s unparalleled drive system, or AC servo direct twin drive and ZR turret, a major innovation since the development of Amada’s first numerically controlled turret punch press. Parts can be produced not only with high speed and productivity but also with less scratches. Further with ID tools and elimination of processing limits, the EM-ZR series can perform high-mix low-volume production continuously over 72 hours.

download brochure

FEATURES

High Quality & High Speed Processing

  • High Speed Processing with scratch free bottom surface ZR turret and completely flat table.
    • Easy Programming – No track dead zones, free tool location

      Stable High Quality Processing [Digital Quality management with ID tools]

      • Prevention of tool setup mistakes – ID tools
        • Stabilization of high quality processing – Tool condition management
          • Elimination of shimming time – Automatic die height adjustment

            Automation of Tool Setup [Reduction of programming time & machine downtime]

            • Easy creation of nesting data – High tool storage capacity
              • Reduction of machine downtime – Automatic tool changing system

                Specifications

                ModelEM-3510ZR TEM-3612ZR TEM-3510ZR BEM-3612ZR B
                Press CapacitykN300
                Drive SystemAC servo direct twin drive
                Turret specificationsZR Turret
                No. of stations (TSU)179 0r 300 Stations
                No. of stations (Buffer)-69 0r 65 0r 75 stations69 0r 65 0r 75 stations69 0r 65 0r 75 stations
                Processing Rangemm2500 x 12753050 x 15222500 x 12753050 x 1525
                Max. Workpiece thicknessmm3.2
                Max. Workpiece masskg
                Table feed ratem/min
                Hit Ratemin-1500 (stroke =5mm pitch=25.4mm) 745(stroke=5mm pitch=2.0mm) 1850(stroke=1.4mm pitch=0.5mm)
                Mass of machinekg23500250002000021500

                Turret Layout

                Tool Size 36ST-2AI 32ST-4AI *w E Range 32ST-4AJ *w/o E Range
                A½ ̎ 16(16)14(14)14(14)
                B1 ¼ ̎ 10(10)8(8)8(8)
                C2 ̎ 2(2)--
                D3 ½ ̎ 1(1)1(1)2(2)
                E4 ½ ̎ 1(1)1(1)-
                B(TAP)1 ¼ ̎ 4(4)
                GAI (1 ¼ ̎) 2(2)
                HAI ( 2 ̎) -2(2)2(2)
                TOTAL363232
