EM-MIIe SERIES

EM-MIIe SERIES

EM-MII SERIES

Further evolution of best seller machine. Setup time reduction and process integration.

New technologies are added to the EM-NT series with the world's unparalleled AC servo direct twin drive system. The result is faster, more productive, and higher-grade sheet metal fabrication.

An ID tool system and an MPT tapping unit are installed to drastically reduce the setup time and achieve blanking process integration.

Features

Achievement of stable high speed processing

  • Process Range Expansion – Punching of 5’ by 10’ sheets without repositioning.
    • Simple & effective mechanism AC servo direct twin drive NCT
      • Tough and stiff frame structure – Highly rigid bridge frame

        Achievement of high quality processing constantly [ID tool for Digital Management in Quality]

        • Prevention of tool installation errors – ID Monitor
          • Tool by digital managements – ID Tools

            Achievement of process integration [Labour and time consuming deburring is automated and speeded up]

            • High Speed and High Productivity – Tapping
              • Secondary operations are remarkably being efficient – High Speed Marking
                • Deburring work can be done automatically at high speed – High Speed Deburring.

                  Specifications - 300kN series

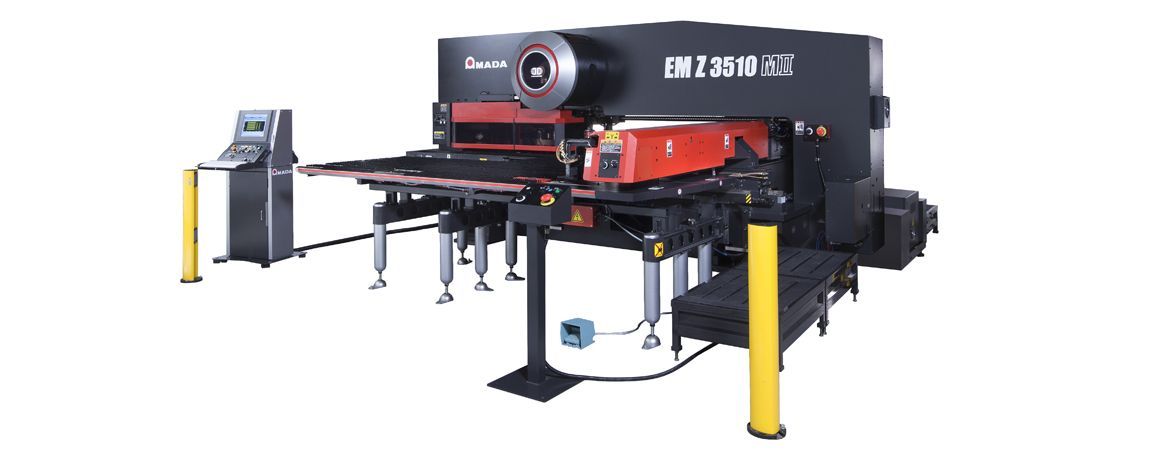

                  EMZ-3510MⅡeEMZ-3612MⅡeEMK-3510MⅡeEMK-3612MⅡe
                  Model nameEMZ3510M2EEMZ3612M2EEMK3510M2EEMK3612M2E
                  Press CapacitykN300
                  Drive MethodAC servo direct twin driveAC servo direct twin driveAC Servo direct twin driveAC Servo direct twin drive
                  Turret specificationsZ turret (different upper and lower diameters)Z turret (different upper and lower diameters)Φ1200King turretΦ1200King turret
                  Number of stations53 (2AI, 4MPT tap),53 (2AI, 4MPT tap),67 (2AI, 4MPT tap),67 (2AI, 4MPT tap),
                  Number of stations58 (2AI, no 4MPT tap)53 (2AI, 4MPT tap),67 (2AI, 4MPT tap),67 (2AI, 4MPT tap),
                  Turret rotation speed (min⁻¹)30
                  Machining range(X × Y) (mm)2500 × 12703050 × 15252500 × 12703050 × 1525
                  Maximum processed plate thickness (mm)3.2 (mild steel)
                  Maximum work mass (kg)50(F1)/150(F4)
                  Table feed speed (X × Y) (m/min)120×80100×80120×80100×80
                  Hit rate (stroke = 5mm, pitch = 25.4mm) (min⁻¹)530515530515
                  Pass line (mm)1000 (single specification)
                  Machining accuracy (mm)±0.1 (according to our inspection standards)
                  Machine mass (kg)18500205001900021000

                  Specifications - 200kN series

                  EM-255MⅡeEM-2510MⅡeEM-2612MⅡe
                  Model nameEM255M2EEM2510M2EEM2612M2E
                  Press capacitykN200
                  Drive systemAC servo direct twin drive
                  Turret specificationsΦ1010 same diameter turret
                  Number of stations49 (2AI, 4MPT tap), 58 (2AI, no 4MPT tap)
                  Turret rotation speed (min⁻¹)30
                  Machining range(X × Y) (mm)1270 × 12702500 × 12703050 × 1525
                  Maximum processed plate thickness (mm)3.2 (mild steel)
                  Maximum work mass (kg)50(F1)/150(F4)
                  Table feed speed (X × Y) (m/min)100×80
                  Hit rate (stroke = 5mm, pitch = 25.4mm) (min⁻¹)515
                  Pass line (mm)1000 (single specification)
                  Machining accuracy (mm)±0.1 (according to our inspection standards)
                  Machine mass (kg)160001700019000

                  TURRET LAYOUT

                  Tooling sizeSame diameter turret - 2 Auto index - With tappingSame diameter turret - 2 Auto index - Without tappingSame diameter turret - 4 Auto index - With tappingSame diameter turret - 4 Auto index - Without tappingZ turret - 2 Auto index - With tappingZ turret - 2 Auto index - Without tappingZ turret - 4 Auto index - With tappingZ turret - 4 Auto index - Without tapping
                  A ½ ̎ 2436242430362424
                  B1 ¼ ̎16(4MPT)1212(4MPT)1214(MPT)1212(4MPT)12
                  C2 34123412
                  D3 ½ ̎ 22112211
                  E4 ½ ̎ 2
                  G1 ¼ ̎(AI)2
                  H2 ̎(AI)--22--22
                  J 4 ½ ̎ (AI) -
                  TOTAL4958444553584445
