HG SERIES

HG SERIES

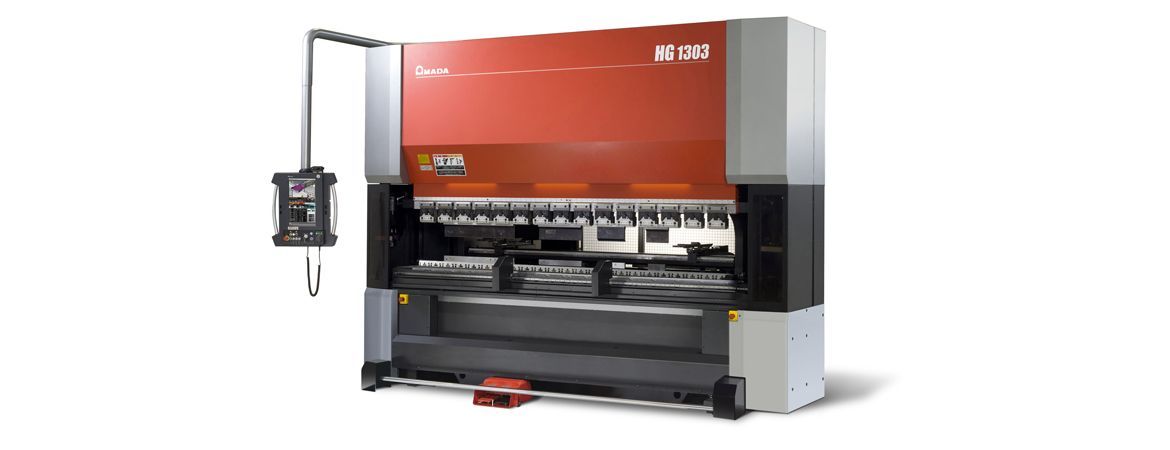

High speed & High accuracy press brakes

HG Series is high end press brake for various mix & various volume production.

An ultra-high precision, high-speed compact bending solution featuring an advanced Dual Servo Power Drive system providing ultimate in bending control and accuracy.

A newly developed NC unit has display functions strengthened to allow operators to check forming information in real time and to contribute to easier operation and shorter lead time. A variety of bend angle solutions support inexperienced operators in achieving target bend angle from the first part without test bending.

Unique Hybrid Drive System

  • Independent AC-servo motors drive high efficiency & bi-directional hydraulic pumps.
    • Extremely fast approach, bending & return speeds provide faster cycle times.

      Multiple Axis Back gauge

      • 6-axis back gauge speed setup for complex parts.
        • High-speed movement on all axes.
          • Independent servo drives for ‘’L’’ axis allow tapered bends.

            Dynamic Hydraulic Crown Bed

            • Amada’s patented hybrid hydraulic crown bed design automatically provides consistent angular accuracy.

              AMNC 3i Control with Network Capabilities

              • User-friendly graphic interface.
                • Automatic program creation from a 3D representation of the workpiece.
                  • Built-in barcode reader
                    • Dual foot pedal ram control.

                      Specifications

                      HG-5020HG-8025HG-1303HG-1703HG-1704HG-2203HG-2204
                      TonnagekN {ton}500 {50}800 {80}1300 {130}1700 {170}1700 {170}2200 {220}2200 {220}
                      Bend Lengthmm2150260031103110430031104300
                      Stoke lengthmm250
                      Approach Speedmm/s220
                      Bending Speedmm/s20
                      Return Speedmm/s250
                      Machine Masskg550072001150015000180001700020000
