Automation of tool setup and angle accuracy adjustment by batch tool layout for multiple part types

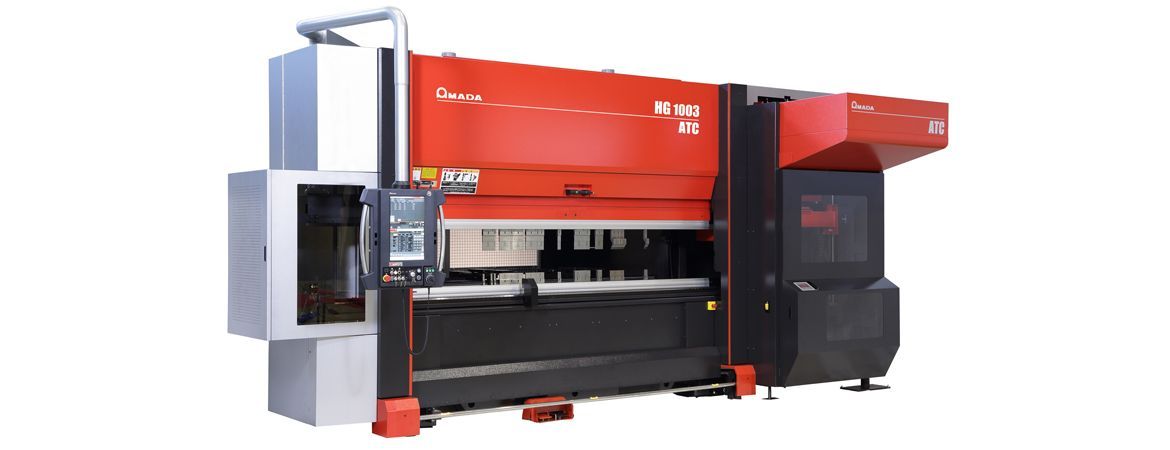

Hybrid press brake with the next generation ATC

The Automatic Tool Changer (ATC) is added to the digital hybrid press brake HG-1003 with a new mechanism.

Tool changes are automated to accommodate high-mix small-batch assembly production






HG-ATC SERIES

large_Product category - Bending-2.jpg

medium_Product category - Bending-2.jpg

small_Product category - Bending-2.jpg

thumbnail_Product category - Bending-2.jpg

Product category - Bending-2.jpg

EG 4010.pdf

The EGBe series aims to be environmental friendly by using electric servos, reduce setups by automation , and be easy to understand , and has completely new options added to allow you to perform high-precision machining and complex machining without making mistakes. It is an environmentally friendly product that even beginners can use anywhere. evolved into a machine .

ENSIS-RIe Series small.jpg

EGB-e SERIES

HRB SERIES.pdf

Easy to operate
Next-generation press brake

The Next Global Standard Bending Machine HRB Press Brake Series leverages industry-leading bending technology and a variety of production-enhancing features that can be customized to resolve your specific challenges. In addition to providing precise bending results, the new HRB Series is engineered to ensure the utmost in versatility and ease-of- use.

- Natural Crowning
- Higher Longitudinal accuracy by centre bend
- User-friendly AMNC 3i
- Easy operation by LITE mode
- Retrofittable options
- New AFH tooling-ATC
- Offline setup for program creation by VPSS3i Bend



HRB SERIES


Retrofittable press brake equipped with hybrid drive system

HG Series.pdf

HG Series is high end press brake for various mix & various volume production.

An ultra-high precision, high-speed compact bending solution featuring an advanced Dual Servo Power Drive system providing ultimate in bending control and accuracy.

A newly developed NC unit has display functions strengthened to allow operators to check forming information in real time and to contribute to easier operation and shorter lead time. A variety of bend angle solutions support inexperienced operators in achieving target bend angle from the first part without test bending.


HG SERIES


High speed & High accuracy press brakes


Press brake for extremely high-mix, small-batch production

Simple operation, and secure, safe and stable bending with a single robot. Bending robot system for bending complex rib and panel shapes.

- HG-Rm with a new hybrid drive system is integrated with single 7-axis articulated robot and a series of intelligent devices aimed specially at bending complex rib and large panel parts.» Simple operation with a single Robot (7-axis articulated Robot)
- Regripping device for panel
- Secure production by squaring table
- Accurate loading of ribbed parts and panels
- Reduced trial bending and reliable production (Bi-S)
- Regripping device for rib parts
- Reduced setup time and expansion of the bending range
- Easy operation
- Dedicated CAM

Model		HG-1003
Capacity	kN {ton}	1000 {100}
Bending Length	mm	3110
Stroke length	mm	620
Rapid Closing Speed	mm/s	220
Bending Speed	mm/s	20
Openning Speed	mm/s	250
Tank Capacity	L	59.5

Tool Type		AMTS III (ATC)
Number of tool stockers	(dies)	18 dies
Number of tool stockers	(punch)	15 punch
Tool layout length	(mm)	15 ~ 2495
Tool length increments	(mm)	5

HG-ATC SERIES

Specifications

ATC Specifications
