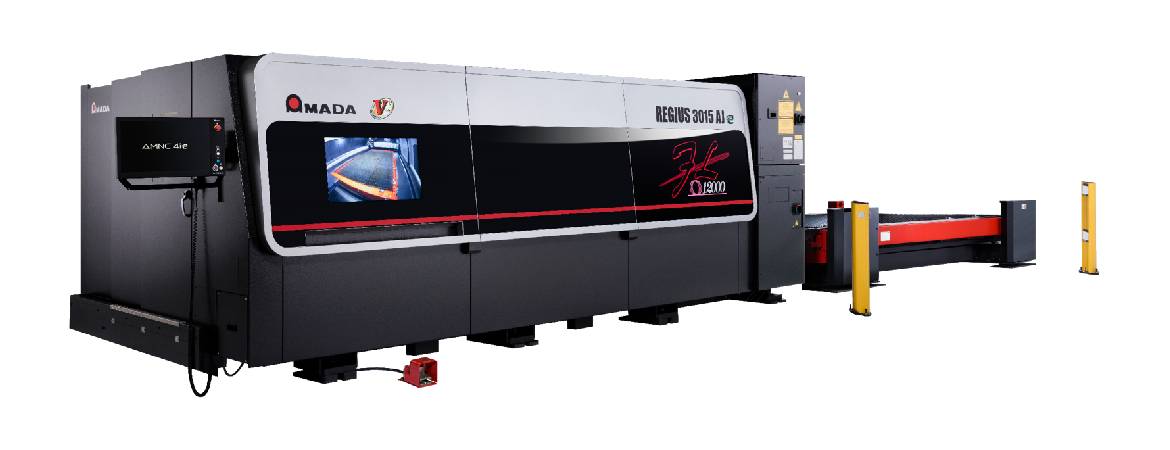

Full linear drive with beam control and autonomous functions.
Equipped with unprecedented ultra-high-speed processing with linear drive and a variety of support functions

large_REGIUS-AJ Series large.png

medium_REGIUS-AJ Series large.png

small_REGIUS-AJ Series large.png

thumbnail_REGIUS-AJ Series large.png

REGIUS-AJ Series large.png

REGIUS-AJe Series






LC-VALSTER 3015 AJ G_E144-HQ01en_202208 (1).pdf

LCG AJ II Series large image.png

LC Valster AJ Series

LC Valster AJ Series.png

LC Valster AJ Technology

ENSIS-AJ Series.pdf

Energy saving, v-lot production, wide range fiber laser machine with process range expansion!

Thin to thick materials can be cut at low power

Fiber lasers were claimed to be advantageous in cutting thin materials. The ENSIS has expanded the thickness range of materials to be cut while retaining the characteristics of fiber laser to cut thin material. The conventional wisdom about fiber lasers is overturned by Amada’s original and latest beam control technology installed on the ENSIS.

ENSIS technology is based on the “Variable Beam Control” unit capable of fully controlling and modulating the laser beam. ENSIS-AJ not only controls the beam diameter and focal point but changes the beam mode according to the material and thickness to be machined.


ENSIS-AJe Series


Fiber laser cutting machine

VENTIS_catalog.pdf

VENTIS is a new laser system equipped with LBC Technology (Locus Beam Control) which allows to modulate the beam and control the movement of the laser beam, ensuring maximum efficiency based on the type of material and thickness to be processed.



VENTIS-AJe Series


World’s First Fiber Laser with LBC Technology

BREVIS AJ.pdf

BREVIS is an all-around fiber laser machine that meets customer needs for cutting thin-to-thick materials.
It's a user-friendly machine that is compact and equipped with the latest features and can be used easily regardless of operator's experience.

brevis 112aj.png

BREVIS-AJ Series


All-around Fiber Laser Machine.  A compact fiber laser machine like never before

REGIUS-AJ Series.png

Ultra high-speed 3-axis linear drive/Fiber Laser Cutting Machine

ENSIS 3015 RI.pdf

The Rotary Index is an integrated unit, allowing the cutting head to be positioned near the chuck—minimizing the dead zone. Bowed pipe or tubing can now be cut without vibration while maintaining accuracy from end to end.

The innovative design expands process range capabilities to cut a significantly wider variety of tubing and pipe. AMADA's ENSIS 3015 RI can process round, square, rectangle, C-channel, and angle iron, making it the most versatile Rotary Index laser cutting system available.

**Fiber laser machine for both flat sheets and tubes**

High-Precision Processing of Flat and Shaped Materials, 3kW Fiber Laser Cutting System with Rotary Index



ENSIS-RI Series


ENSIS 3015 RI Fiber Laser with Rotary Index



Laser Machines

small_REGIUS-AJ Series.png

thumbnail_REGIUS-AJ Series.png

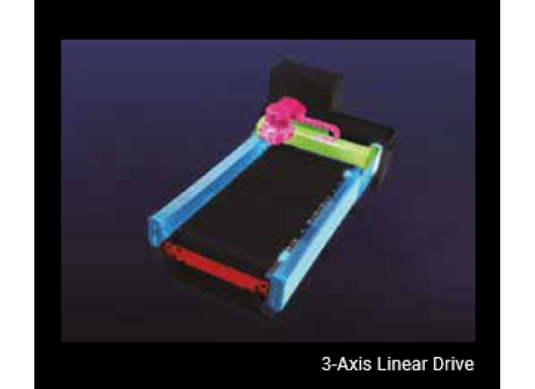

Linear drive technology provides very high point-to-point positioning speeds whilst also retaining the ability to provide very high accuracy, even at these increased speeds. Closed loop feedback ensures he accuracy remains consistent at all times.

The REGIUS-AJ also features intelligent head control which further improves the machine productivity by looking ahead to the next profile to be processed and calculating the most efficient motion.


REGIUS-AJ Series (4).png

Full 3-Axis linear drive

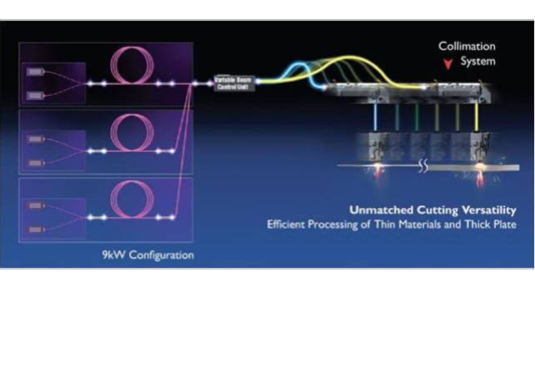

AMADA’s original Variable Beam Control Technology automatically adapts the laser beam mode incrementally to perfectly match the material and thickness being processed. The beam mode can also be instantly changed between piercing and cutting to bring the benefit of high speed piercing and increased productivity.

REGIUS-AJ Series (3).png

VARIABLE BEAM CONTROL TECHNOLOGY

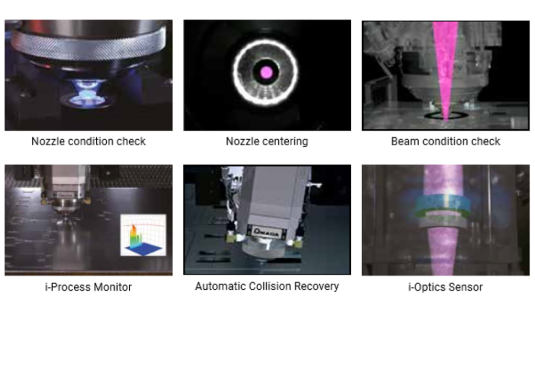

The new Laser Integration System incorporates several autonomous features to allow the REGIUS to perform at the highest levels of efficiency with minimal operator input, allowing less skilled employees to be utilized.

The i-Nozzle checker has e automatic functions: Nozzle condition check, nozzle centring and beam condition check.

Three other LIS functions are i-Process Monitor, Automatic Collision Recovery and i-Optics Sensor.

REGIUS-AJ Series (2).png

LASER INTEGRATION SYSTEM (LIS)

ENHANCED FUNCTIONS

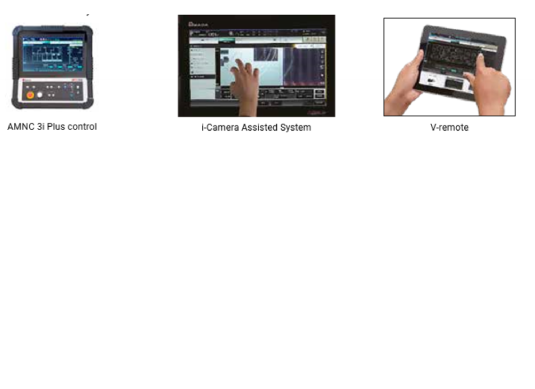

New features of the AMNC 3i Plus control, such as camera based on-screen nesting and screen sharing provide ease of operation and efficiency

REGIUS-AJ Series (1).png

EASY OPERATION

		REGIUS-3015AJe	REGIUS-4020AJe
Axis movement X×Y×Z	mm	3070 × 1550 × 100	4070 × 2050 × 100
Maximum processing dimensions X×Y	mm	3070 × 1550	4070 × 2050
Maximum work mass	kg	920	1570
NC device		AMNC4ie
Control method		X, Y, Z axis (simultaneous 3 axis control) + B axis
oscillator		AMADA ENSIS-6000S / ENSIS-9000 / ENSIS-12000
Chiller		RKE7502B-VA-UP2BP-L / RKE11002B-VA-UP2BP / RKE15002B-VA-UP2
dust collector		JXN-6XA / JXN-7XA *1 (stand-alone/pail can type)
Axis movement method		X-axis, Y-axis, Z-axis linear motor system
Rapid traverse speed X×Y composite	m/min	340
Processing feed speed X・Y	m/min	0 to 240 (maximum commandable speed)
Minimum setting unit	mm	0.001

		ENSIS-6000S	ENSIS-9000	ENSIS-12000
Oscillation method		Laser diode pumped fiber laser
Rated output	W	6000	9000	12000
Stability	%	±2.0 or less
Pulse peak output	W	6050	9150	12150
Pulse frequency	Hz	1 to 10000
Duty	%	0 to 100
Wavelength	µm	1.08	1080±4	1080±4

		LST-3015E
Max. material dimensions X x Y	mm	3070 x 1550
Number of pallets		2

REGIUS-AJe Series

Full 3-Axis linear drive

VARIABLE BEAM CONTROL TECHNOLOGY

LASER INTEGRATION SYSTEM (LIS)

EASY OPERATION

Machine Specification

Oscillator Specifications

Shuttle Table Specification
