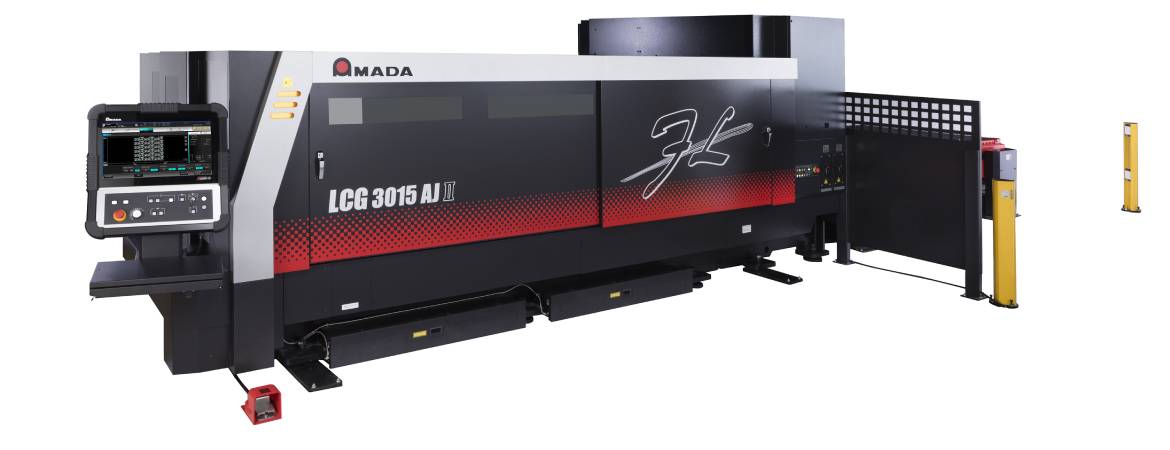

LCG3015AJ II
LCG3015AJ II
The AMADA’s global standard fiber laser machine LCG-AJ series. High-efficiency fiber laser cutting system that most suitable for processing wide range materials.
Better productivity
- Processing of various materials without changing the focus lens.
- Automatic nozzle changer unit
Expanded processing range
- High pressure air cutting
- Deep engraving
Flexible options
- Upgraded automation solutions (MPL-C, ASFH-TKL,AS-T,MARS)
- X-Direction conveyor
Easy operation – AMNC-3i
Specifications
| LCG3015AJ II | ||
|---|---|---|
| Rated Laser Power | 3000W | |
| Oscillator | LD pumped fiber laser | |
| Processing Dimension X x Y x Z | mm | 3070 x 1550 x 100 |
| Axis control method | X, Y, Z axes ( simultaneous controller ) + B axis + CF axis | |
| Rapid traverse X x Y composite | m/min | 170 |
| Processing feed rate X x Y | m/min | 0 - 120 (max. command speed ) |
| Mass of the machine (include oscillator) | kg | 9100 |
| Material Thickness | mm | |
| Mild steel | 19 | |
| Stainless steel | 15 | |
| Aluminium | 12 | |
| Brass | 8 | |
| Copper | 6 | |
