LC Valster AJ Series






LC Valster AJ Series.png

LC Valster AJ Technology

ENSIS-AJ Series.pdf

Energy saving, v-lot production, wide range fiber laser machine with process range expansion!

Thin to thick materials can be cut at low power

Fiber lasers were claimed to be advantageous in cutting thin materials. The ENSIS has expanded the thickness range of materials to be cut while retaining the characteristics of fiber laser to cut thin material. The conventional wisdom about fiber lasers is overturned by Amada’s original and latest beam control technology installed on the ENSIS.

ENSIS technology is based on the “Variable Beam Control” unit capable of fully controlling and modulating the laser beam. ENSIS-AJ not only controls the beam diameter and focal point but changes the beam mode according to the material and thickness to be machined.


ENSIS-AJe Series


Fiber laser cutting machine

VENTIS_catalog.pdf

VENTIS is a new laser system equipped with LBC Technology (Locus Beam Control) which allows to modulate the beam and control the movement of the laser beam, ensuring maximum efficiency based on the type of material and thickness to be processed.



VENTIS-AJe Series


World’s First Fiber Laser with LBC Technology

BREVIS AJ.pdf

BREVIS is an all-around fiber laser machine that meets customer needs for cutting thin-to-thick materials.
It's a user-friendly machine that is compact and equipped with the latest features and can be used easily regardless of operator's experience.

brevis 112aj.png

BREVIS-AJ Series


All-around Fiber Laser Machine.  A compact fiber laser machine like never before

Full linear drive with beam control and autonomous functions.
Equipped with unprecedented ultra-high-speed processing with linear drive and a variety of support functions

REGIUS-AJ Series large.png

REGIUS-AJe Series

REGIUS-AJ Series.png

Ultra high-speed 3-axis linear drive/Fiber Laser Cutting Machine

ENSIS 3015 RI.pdf

The Rotary Index is an integrated unit, allowing the cutting head to be positioned near the chuck—minimizing the dead zone. Bowed pipe or tubing can now be cut without vibration while maintaining accuracy from end to end.

The innovative design expands process range capabilities to cut a significantly wider variety of tubing and pipe. AMADA's ENSIS 3015 RI can process round, square, rectangle, C-channel, and angle iron, making it the most versatile Rotary Index laser cutting system available.

**Fiber laser machine for both flat sheets and tubes**

High-Precision Processing of Flat and Shaped Materials, 3kW Fiber Laser Cutting System with Rotary Index



ENSIS-RI Series


ENSIS 3015 RI Fiber Laser with Rotary Index



Laser Machines

small_LC Valster AJ Series.png

thumbnail_LC Valster AJ Series.png

Model name

Realizes high-speed and stable processing from thin to thick sheets

beam control technology.png

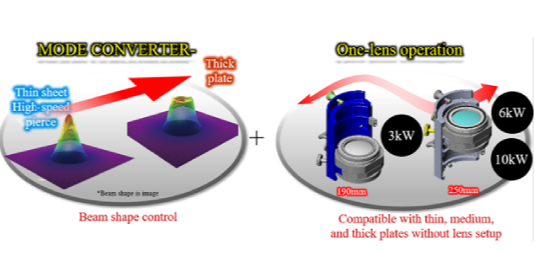

Beam control technology and no need for lens replacement

Making Laser Processing more efficient with state of the art
sensors

laser integration system.png

Laser Integration System

Optimization of head control and adjustment of joint amount during operation

improved machine controllability.png

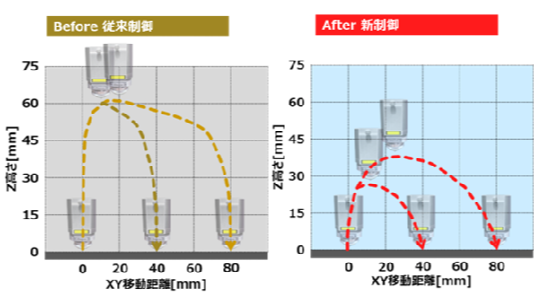

Improved machine controllability (with AMNC 3i Plus)

Model name		LC VALSTER3015AJG
Axis movement method		X-axis and Y-axis: Rack & pinion Z-axis: Ball screw
Maximum machining dimensions X*Y	mm	3070×1550
Axis travel XYZ	mm	3070×1550×150
Maximum rapid feed rate (X and Y axes)	m/min	120
Maximum rapid feed rate (Z-axis)	m/min	80
Cutting feedrate		0～120m/min(Maximum commandable speed)
Control method		X/Y/Z-axis control (simultaneous control 3 axes) B-axis
Maximum workpiece weight	kg	920
Pass line	mm	940
Oscillator type		FL3000 \| FL6000 \| FL10000
Oscillation method		LD-pumped Fiber lasers
LD-pumped Fiber lasers	W	3000 / 6000 / 10000
NC equipment		AMNC 3i
Partition		Full-partition ceiling open/close integrated telescopic type
Total power receiving capacity (not including dust collectors and chillers)	kVA	13 / 22.6 / 34.5
Machine dimensions XYZ	mm	9907×2953×2390
Machine mass ( main body only )	kg	8600

LC Valster AJ Series

Beam control technology and no need for lens replacement

Laser Integration System

Improved machine controllability (with AMNC 3i Plus)

Specifications
