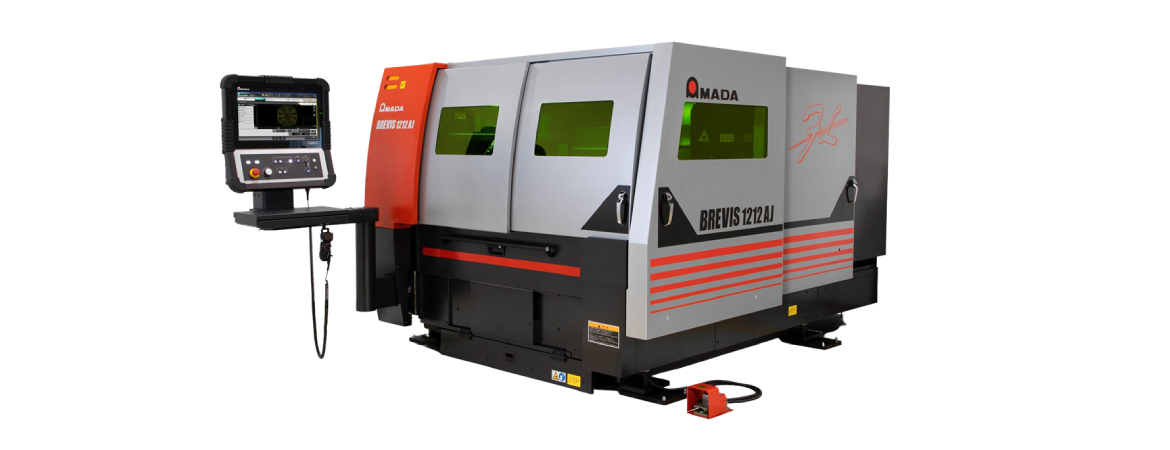

BREVIS-AJ Series
All-around Fiber Laser Machine. A compact fiber laser machine like never before
BREVIS is an all-around fiber laser machine that meets customer needs for cutting thin-to-thick materials. It's a user-friendly machine that is compact and equipped with the latest features and can be used easily regardless of operator's experience.
Compact
- The long-awaited compact size fiber lasers are now available! A versatile 4' × 4' size fiber laser machine achieves the same installation space as the LC-1212α series.
All-around
- BREVIS can process highly reflective materials such as copper, brass, aluminum and hot-dip galvanized, which are difficult to process with a CO2 laser. Equipped with a 3kW fiber laser oscillator, it can provide a wide range cutting of thin-to-thick materi
User-friendly
- Equipped with AMNC 3i, fully open partition and one-lens operation which enables processing the entire material range with single lens, it is easy for anyone to use. Fiber laser oscillator contributes greatly to reduce the electric power costs.
Machine Specification
| Machine Model | BREVIS-1212AJ | |
|---|---|---|
| Registered machine name | BRE-1212AJ | |
| Max. axis travel X * Y * Z | mm | 1270 x 1270 x 200 |
| Max. sheet size X * Y | mm | 1270 x 1270 |
| Rapid feed rate X/Y/Z | m/min | 40/40/60 |
| Max. material weight | kg | 150 |
| NC model | AMNC 3i | |
| Control method | X, Y and Z-axes (Simultaneous 3 axes control) + B, CF-axes | |
| Min. setting unit | mm | 0.001 |
| Oscillator | Oscillator method | Laser diode-pumped fiber laser |
| Oscillator | Rated laser power W | 3000 |
| Machine weight (main body only) | kg | 4800 |
| Power requirement (Chiller, dust collector included) | kVA | 25 |
