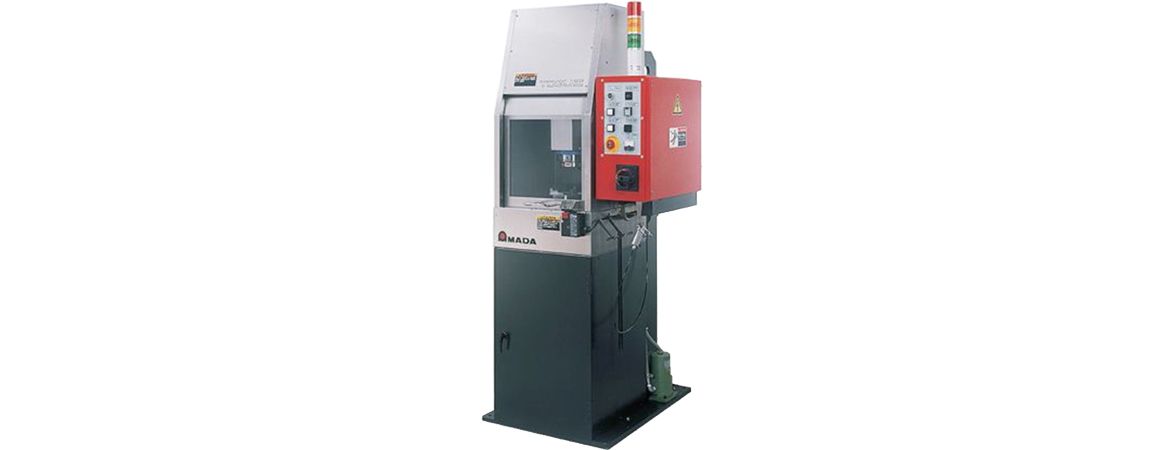

Automated, precise, high-speed grinding

The TOGU -III has been created to assist the grinding process and to considerably reduce the loss in production time and will help every customer obtain the highest quality of grinding.

**Development Concept**

High-precision automated grinding designed specially for turret punch press tooling.

Servo-controlled wet rotary grinding provides unsurpassed surface finish while significantly increasing tool life.

Easy operation, experienced grinding operator is not required.

Small footprint allows strategic shop placement.








TOGU III

large_csr-banner (1).jpg

medium_csr-banner (1).jpg

small_csr-banner (1).jpg

thumbnail_csr-banner (1).jpg

csr-banner (1).jpg

FLW-1500MT Catalog.pdf

The combination of a high power oscillator and the latest wobbling feature provides wide-range welding, from “smooth welding unique to fiber laser” to “deep penetration welding with minimal distortion using focused beam”.
In addition, high energy-saving performance of fiber laser and compact footprint by an oscillator with a built-in control device support customers manufacturing as a high cost-performance machine.

fiber laser welding large.png

Fiber Laser Welding

fiber laser welding small.png

New Standard for Sheetmetal Welding Handy Fiber Laser Welder “FLW-1500MT” uses an oscillator with 1500W rated power.

ID-TOGU.pdf

ID-TOGU always can provide optimal grinding by taking grinding values from AITS server automatically. Tool height data is transferred to AITS server when tools are measured by the measuring device. It enables digital Management of tooling condition, and realizes stable processing quality.

Auto-grinding machine for ID tool

Skill-less and optimal tool-grinding has been achieved by digital control

**New Technology**


- Simple operation and precise grinding
   - High quality grinding by digital control
- Sharing tool information without skill after regrinding
   - Realizing stable punching by tool information sharing through network.
- Advanced new functions from TOGU III
   - Shortening maintenance time
   - Punch height measuring function
   - Safety door
   - Air-blowing function after ground
   - High speed mode function
   - Maintenance navigation function




ID-TOGU


Digital Management of Grinder


Achieve the Perfect Grind every time

FLW ENSIS - Fiber Laser Welding System.pdf

Achievement of high speed and high grade welding with various functions

**Amada’s latest technologies**

- Beam weaving mechanism
- NC automatic focus control
- Moving filler
- Assist gas nozzle (side nozzle, coaxial nozzle)

\
**Enhancement of welding efficiency by digitalization (AMNC/PC)**

- TAS
- Schedule operation
- Setup navigation
- Standard processing



WELDING MACHINE – FLW SERIES



Spot welding Machine – ID series



Table type Spot welding Machine – TS series


**Stud welding machine with no need for collet change**

- High accuracy NC and High accuracy positioning  unit
- Prevention of careless mistakes with data entry into NC unit
- Tilt-free welding with rigid frame and positioning unit
- Centre punch and  template are not required. Weld error is eliminated




		TOGU III
Machine Weight	kg	480 (excluding a transformer)
Power Supply		AC200/220V 3 phase 2.5k VA
A Transformer is used outside AC200/220V area
Air Supply	L/min	1700
Grinding Wheel		CBN ø135
Max. diameter too, size		ø160
Max. Grinding	mm	0.99
Main axis motor		1.5KW 2P
Main axis rotation speed	rpm	2810/3000
Main axis travel	mm	240
Main axis feed motor		DC Server Motor 40w
Main axis feed speed-high	mm/min	600
Main axis feed speed-middle	mm/min	60
Main axis feed speed-low	mm/min	0.06
Table motor		0.1kw 4P
Table rotation speed	rpm (50/60 Hz)	60/72
Cooling water pump motor		0.06kw 2P
Cooling water pump motor flow		20/25L/ (50/60 Hz)

TOGU III

Specifications
