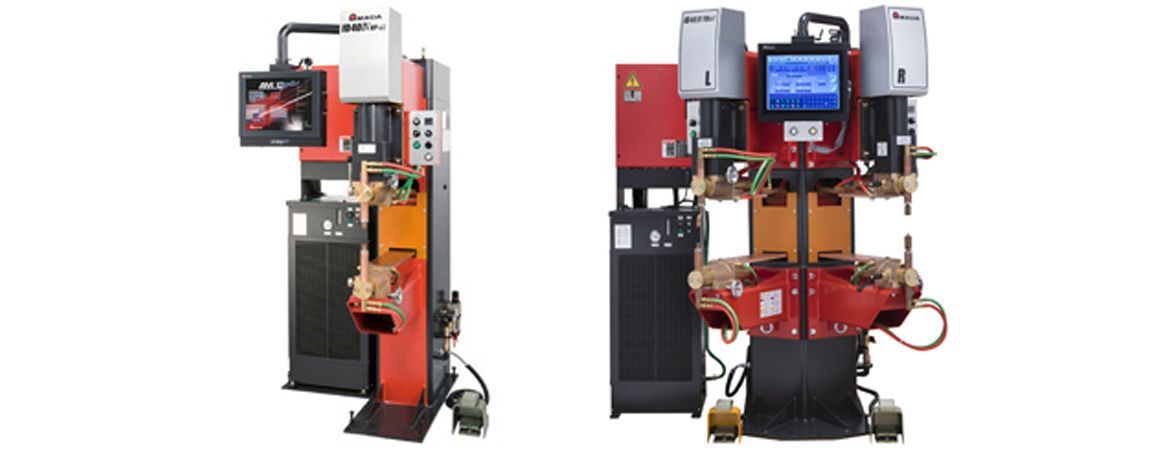

Spot welding Machine – ID series
Features
Inverter-controlled DC spot welding machine
- Thermal efficiency is high enough to reduce burning and distortion and to prolong electrode life.
- Aluminium and coated metals can be welded
- The power requirement is reduced to a much lower level than that of a AC single-phase power supply.
- Occurrence of expulsion (sparks), burning and indentations is reduced to reduce secondary operations.
- The welding conditions can be simply set.
- The stability range is expanded, regardless of electrodes and material, to improve weld quality.
Specifications
| Model | ID-40 IV HP / ID40 IV HP-NT | ID-40 IV ST | ID-40 III LD | |
|---|---|---|---|---|
| Standard throat dimension | Gap: 200 x depth 600~830 | Gap: 200 x depth 600~830 | Gap: 200~300 x depth 350~500 | |
| Rated capacity | 40 | 40 | 35 | |
| Maximum weld current | 30000 | 21000 | 15000 | |
| Maximum electrode force | 6 | 6 | 1.5 | |
| Maximum material thickness | SPC: 3.2+3.2 / SECC:3.2+3.2 / SUS:3.0+3.0 AL:HP/2.5+2.5 / AL:ST/1.5+1.5 | SPC: 3.2+3.2 / SECC:3.2+3.2 / SUS:3.0+3.0 AL:HP/2.5+2.5 / AL:ST/1.5+1.5 | SPCC:2.3+2.3 SECC:2.3+2.3 / SUS:2.0+2.0 | |
