ID-TOGU.pdf

ID-TOGU always can provide optimal grinding by taking grinding values from AITS server automatically. Tool height data is transferred to AITS server when tools are measured by the measuring device. It enables digital Management of tooling condition, and realizes stable processing quality.

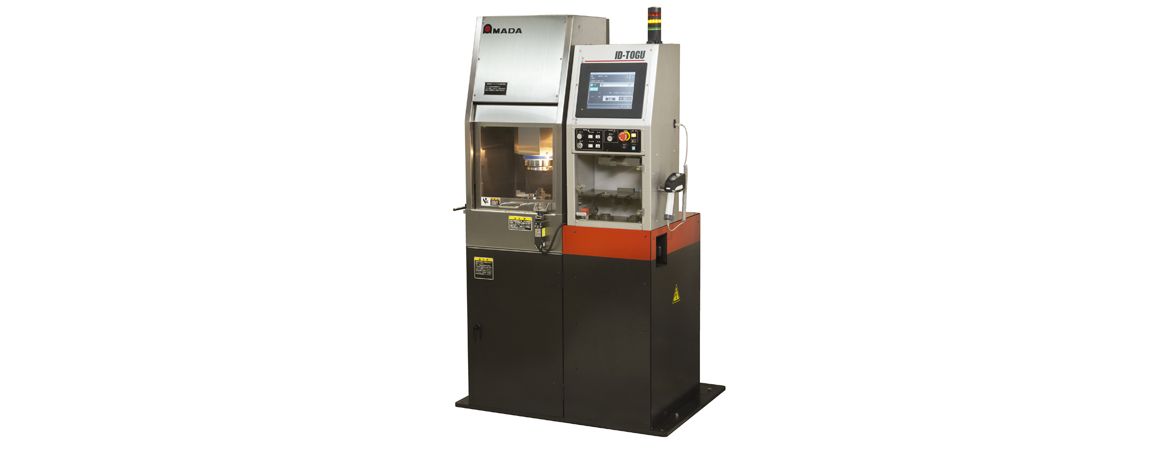

Auto-grinding machine for ID tool

Skill-less and optimal tool-grinding has been achieved by digital control

**New Technology**


- Simple operation and precise grinding
   - High quality grinding by digital control
- Sharing tool information without skill after regrinding
   - Realizing stable punching by tool information sharing through network.
- Advanced new functions from TOGU III
   - Shortening maintenance time
   - Punch height measuring function
   - Safety door
   - Air-blowing function after ground
   - High speed mode function
   - Maintenance navigation function








ID-TOGU

large_csr-banner (1).jpg

medium_csr-banner (1).jpg

small_csr-banner (1).jpg

thumbnail_csr-banner (1).jpg

csr-banner (1).jpg

FLW-1500MT Catalog.pdf

The combination of a high power oscillator and the latest wobbling feature provides wide-range welding, from “smooth welding unique to fiber laser” to “deep penetration welding with minimal distortion using focused beam”.
In addition, high energy-saving performance of fiber laser and compact footprint by an oscillator with a built-in control device support customers manufacturing as a high cost-performance machine.

fiber laser welding large.png

Fiber Laser Welding

fiber laser welding small.png

New Standard for Sheetmetal Welding Handy Fiber Laser Welder “FLW-1500MT” uses an oscillator with 1500W rated power.


Digital Management of Grinder

Automated, precise, high-speed grinding

The TOGU -III has been created to assist the grinding process and to considerably reduce the loss in production time and will help every customer obtain the highest quality of grinding.

**Development Concept**

High-precision automated grinding designed specially for turret punch press tooling.

Servo-controlled wet rotary grinding provides unsurpassed surface finish while significantly increasing tool life.

Easy operation, experienced grinding operator is not required.

Small footprint allows strategic shop placement.




TOGU III


Achieve the Perfect Grind every time

FLW ENSIS - Fiber Laser Welding System.pdf

Achievement of high speed and high grade welding with various functions

**Amada’s latest technologies**

- Beam weaving mechanism
- NC automatic focus control
- Moving filler
- Assist gas nozzle (side nozzle, coaxial nozzle)

\
**Enhancement of welding efficiency by digitalization (AMNC/PC)**

- TAS
- Schedule operation
- Setup navigation
- Standard processing



WELDING MACHINE – FLW SERIES



Spot welding Machine – ID series



Table type Spot welding Machine – TS series


**Stud welding machine with no need for collet change**

- High accuracy NC and High accuracy positioning  unit
- Prevention of careless mistakes with data entry into NC unit
- Tilt-free welding with rigid frame and positioning unit
- Centre punch and  template are not required. Weld error is eliminated




Model		ID-TOGU
Tool diameter	(mm)	φ1.51〜160
Tool height	(mm)	chuck jaw height〜150
Standard grinding wheel	(mm)	CBN φ135
Tool height measuring range	(mm)	28～209
Power supply		three(3)-phase, 200V(50/60Hz)2.5kVA

ID-TOGU

Specifications
