VENTIS_catalog.pdf

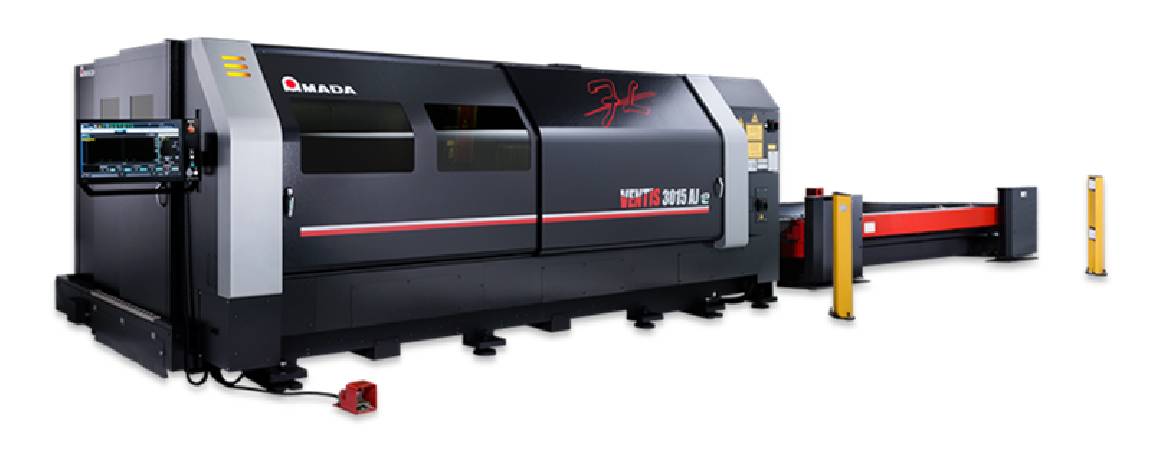

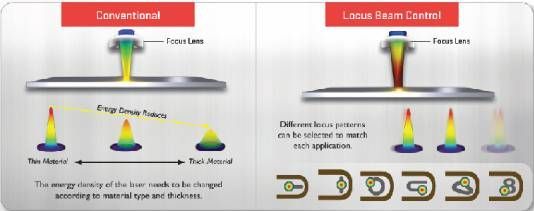

VENTIS is a new laser system equipped with LBC Technology (Locus Beam Control) which allows to modulate the beam and control the movement of the laser beam, ensuring maximum efficiency based on the type of material and thickness to be processed.







VENTIS-AJe Series






LC-VALSTER 3015 AJ G_E144-HQ01en_202208 (1).pdf

LCG AJ II Series large image.png

LC Valster AJ Series

LC Valster AJ Series.png

LC Valster AJ Technology

ENSIS-AJ Series.pdf

Energy saving, v-lot production, wide range fiber laser machine with process range expansion!

Thin to thick materials can be cut at low power

Fiber lasers were claimed to be advantageous in cutting thin materials. The ENSIS has expanded the thickness range of materials to be cut while retaining the characteristics of fiber laser to cut thin material. The conventional wisdom about fiber lasers is overturned by Amada’s original and latest beam control technology installed on the ENSIS.

ENSIS technology is based on the “Variable Beam Control” unit capable of fully controlling and modulating the laser beam. ENSIS-AJ not only controls the beam diameter and focal point but changes the beam mode according to the material and thickness to be machined.


ENSIS-AJe Series


Fiber laser cutting machine


World’s First Fiber Laser with LBC Technology

BREVIS AJ.pdf

BREVIS is an all-around fiber laser machine that meets customer needs for cutting thin-to-thick materials.
It's a user-friendly machine that is compact and equipped with the latest features and can be used easily regardless of operator's experience.

brevis 112aj.png

BREVIS-AJ Series


All-around Fiber Laser Machine.  A compact fiber laser machine like never before

Full linear drive with beam control and autonomous functions.
Equipped with unprecedented ultra-high-speed processing with linear drive and a variety of support functions

REGIUS-AJ Series large.png

REGIUS-AJe Series

REGIUS-AJ Series.png

Ultra high-speed 3-axis linear drive/Fiber Laser Cutting Machine

ENSIS 3015 RI.pdf

The Rotary Index is an integrated unit, allowing the cutting head to be positioned near the chuck—minimizing the dead zone. Bowed pipe or tubing can now be cut without vibration while maintaining accuracy from end to end.

The innovative design expands process range capabilities to cut a significantly wider variety of tubing and pipe. AMADA's ENSIS 3015 RI can process round, square, rectangle, C-channel, and angle iron, making it the most versatile Rotary Index laser cutting system available.

**Fiber laser machine for both flat sheets and tubes**

High-Precision Processing of Flat and Shaped Materials, 3kW Fiber Laser Cutting System with Rotary Index



ENSIS-RI Series


ENSIS 3015 RI Fiber Laser with Rotary Index



Laser Machines



Model

In Productivity mode - Realise a significant improvement throughput when cutting stainless steel and aluminium with nitrogen. And these performance levels, in tandem with lower energy consumption, can reduce processing costs by up to 75% in some instances.


Productivity mode

Quality mode - Improves the surface roughness and resultant dross levels. Cut quality is assured by reducing surface roughness by approximately 50% when compared with a conventional machine. And can eliminate secondary operations such as deburring and reduce processing costs.


Quality mode

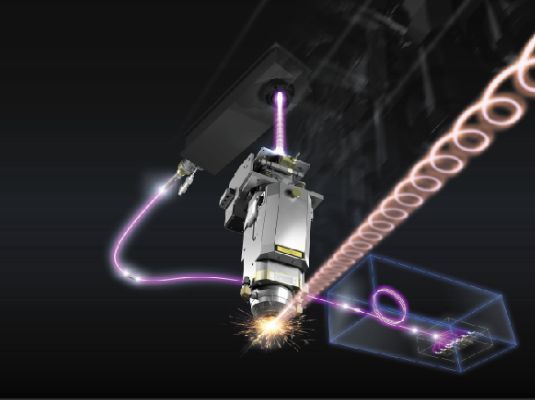

Kerf Control mode enables long-term stable processing during automated system operation. By controlling the locus beam, the kerf width can be controlled to be 2.3 times wider than general fiber lasers. In fact, the system is able to control kerf width for optimal efficiency based on the material type and thickness being processed.


Kerf-Control mode

Model		VENTIS-3015 AJe	VENTIS 4020 AJe
Registered model name		VN3015AJE	VN4020AJE
Axis travel distance X×Y×Z		3070×1550×100	4070×2050×100
Maximum processing dimensions X×Y	mm	3070×1550	4070×2050
Maximum material mass	kg	920	1570
NC type		AMNC 4ie
Axis control method		X, Y, Z axes (simultaneous 3-axis control) + B axis + CF axis
Oscillator		AMADA AJ-4000S / AJ-6000S
Chiller		RKE5502B-VA-UP2BP-L / RKE7502B-VA-U2BP-L
Dust collector		PXN-6XA / JXN-6XA (self-standing pail can type)
Axis travel method		X- and Y-axis: Rack and pinion Z-axis: Ball screw
Rapid traverse X×Y Composite	m/min	170
Processing feed rate X×Y	m/min	0 ~ 120 (maximum command speed)
Least input increment	mm	0.001

Model		AJ4000S	AJ6000S
Oscillation Method		LD excitation fiber laser
Rated laser power	W	4000	6000
Stability	%	±2.0 or lower
Pulse peak output	W	4050	6050
Pulse frequency	Hz	1~10000
Duty	%	0~100
Wave length	µm	1.08

VENTIS-AJe Series

Productivity mode

Quality mode

Kerf-Control mode

Specification

Oscillator specification
